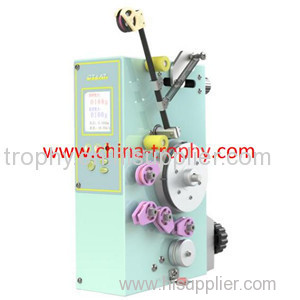

TROPHY Electronic Tensioner MET-SD series with real time tension display and multiple setting for coil winding machines

Price:	1.0 USD
Payment Terms:	T/T
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MET-NSD

Production Capacity: 1

Delivery Date: 7 DAYS

tension control: coil winding tensioner

Means of Transport: Air

Packing: N/M

tensioner: wire tensioner

electronic tensioner: precise tensioner

N/A

MET-SD has a newly developed closed-loop automatic tension adjustment function. The actual tension can always be kept consistent with the pre-set tension.

The operation is simple, the display is intuitive, high precision tension control; extremely fast feedback system tracks the changes in wire travel speed and measure tension in real time; and adjust the output tension accordingly. MET-SD provides multi-stage tension alarm setting, also allows remote setting from winding machine's PLC.

Advantages:
- Electronic constant tension control technology

- Multiple tension setting

- Switching between pre-set tensions are simple and easy

- Built-in wire break detection

- Built-in upper and lower limit alarm output (multiple setting)

- Compatible with stand-alone settings, and remote PLC settings for multiple tensioners

MET series

Part Number	Tension Range	Suitable Wire Size
MET-NSD100	15-100g	0.04-0.12mm
MET-NSD300	30-300g	0.06-0.22mm
MET-NSD500	50-500g	0.08-0.30mm
MET-NSD1000	100-1000g	0.10-0.45mm
MET-NSD2000	200-2000g	0.15-0.65mm
