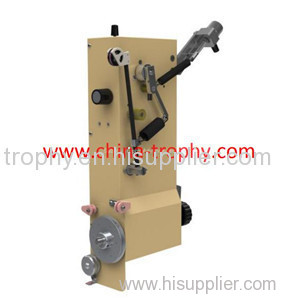

Coil Winding Tensioner Servo Tensioner for coil winding machines

Price:	1.0 USD
Payment Terms:	T/T
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DSV-CF

Production Capacity: 1

Delivery Date: 7 DAYS

tension control: coil winding tensioner

Means of Transport: Air

Packing: N/M

tensioner: wire tensioner

The DSV series features high speed closed loop servo tensioners with a maximum wire-feeding speed of 25 meters per second.

The DSV series features high speed closed loop servo tensioners with a maximum wire-feeding speed of 25 meters per second. Its high-speed/high torque servo motor and built-in Adaptive Speed Control Software provides fast response to rapid changes in coil winding speed and a wider tension range for high-speed precision winding.

DSV series comes with two-stage tensions setting and wire breakage detection.

Its selective optional functions are real-time tension measurement and display system.

Advantages:

- Precise, stable and consistent tension for hi-speed precision winding

- Two stage tension setting

- Easy adjustment of main tension and second tension

- Simple and clear LED indicator

- Dual spring tension control, wide tension range

DSV-CF Series

- Optional Real-time tension measurement and display system

- Double scale ruler for easy tension value setting

- Dual spring tension control provides wide tension range

Part Number	Tension Range	Max. Wire Travel Speed	Rated Current	Suitable Wire Size
DSV-CF-C15-45J400	1-400g	15m/s	3.0A	0.01-0.25mm
DSV-CF-C15-45J1000	1-1000g	15m/s	4.5A	0.06-0.40mm
DSV-CF-C25-45J400	1-400g	25m/s	4.5A	0.01-0.25mm
