TROPHY Mechanical Tension meter T1 manufacturer from China Suzhou Trophy Advance-Tech Corp.,LTD

Price:	1.0 USD
Payment Terms:	T/T
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: T1

Production Capacity: 1

Delivery Date: 7 DAYS

Means of Transport: Air

Packing: N/M

tension meter: tension measurement

N/A

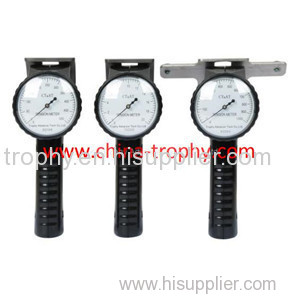

Tension meter T1 series is used to accurately measure the running line tensions on all kinds of wires (copper, aluminium, plastic etc.), cotton thread and fibers. With precise jewelled (Ruby bushing) movements, precision ball bearing mounted rollers and a built-in damper, the T1 tension meter completely eliminates the vibrations and resistance caused by the instrument itself, providing reliable, accurate and steady tension readings even as it fluctuates.

Parameters:

Casing material: ABS plastic

Accuracy:Within 1 minimum scale on dial

Dimensions: ~ Ø60 x 160 x 95 (mm)

T1 Series

Part Number	Measurement Range	Min. Scale on dial
T1-01-020	0-20g	0.5g
T1-01-050	0-50g	1.0g
T1-01-100	0-100g	2.0g
T1-01-200	0-200g	4.0g
T1-01-300	0-300g	6.0g
T1-01-500	0-500g	10.0g
T1-02-1000	0-1000g	20.0g
T1-02-2000	0-2000g	40.0g
T1-02-3000	0-3000g	60.0g
